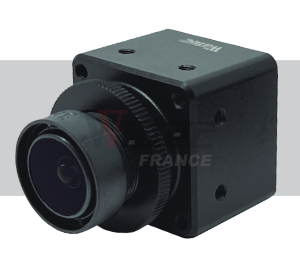

WAT-08U2 (G3.6) - 1/2.8" Ultra-compact USB2.0 Full HD Color Camera

  • réf. WAT-08U2 WAT-08U2 (G3.6) - 1/2.8" Ultra-compact USB2.0 Full HD Color Camera - WAT-08U2

Downloads

WAT-08U2 (G3.6) 1/2.8" Ultra-compact USB2.0 Full HD Color Camera

Caracteristics and functions:

  • Ultra-compact design enables the camera to be installed anywhere from surveillance to embedded applications
  • 1/2.8-inch CMOS sensor with high quality video output at 30fps in Full HD
  • USB Video Class & USB Bus Power (plug & play)
  • Lens fixing ring prevents misalignment of focus
  • Ideal for embedding due to the special designed USB connector reduces depth
  • Various optional M12 lenses available *Std. lens: G3.6

Specifications :

  • Sensor: 1/2.8 inch CMOS
  • Output Size: 1920×1080, 1280×960, 1280×720, 640×480, 320×240
  • Max. Frame Rate: 60fps
  • Video Compression: MJPG, YUY2
  • Min. Illumination: 0.3 lx F2.0 (AGC ON=36dB, Shutter=OFF) / 0.07 lx F2.0 (AGC ON=36dB, Shutter=1/7.5 sec.
  • Avaiable functions : ATW, MWB, BLC
  • Sharpness: Level Adjustable
  • Interface: USB (High Speed)
  • Power Supply: USB +5V
  • Power consumption: 0.75W (150mA)
  • Operating temperature: -10 - +50°C
  • Storage Temperature: -30 - +70°C
  • Standard lens : M360BC-12 (f3.6 F2.0)
  • Cable Length: 1.0m
  • Weight: Approx. 18g
